燃氣蒸汽鍋爐出口應用于天燃氣豐富的中東和西亞國家（如俄羅斯，烏磁別克斯坦，伊郎，伊拉克，沙特阿拉伯，土耳其，印度，巴基斯坦）

Gas and steam boilers are exported to countries in the Middle East and West Asia rich in natural gas (such as Russia, Uzbekistan, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan)

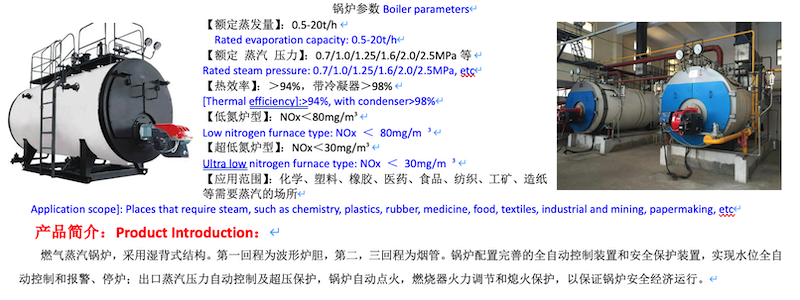

   燃氣蒸汽鍋爐是以天然氣為燃料，在爐內燃燒放出來的熱量，加熱鍋內的水，并使其汽化成蒸汽的熱能轉換設備，水在鍋（鍋筒）中不斷被爐里氣體燃料燃燒釋放出來的能量加熱溫度升高并產生帶壓蒸汽。

Gas steam boiler is a thermal energy conversion equipment that uses natural gas as fuel, burns the heat released in the furnace, heats the water in the pot, and vaporizes it into steam. The water in the pot (drum) is continuously heated by the energy released by the combustion of gas fuel in the furnace, heating the temperature and producing pressurized steam.

Gas steam boiler adopts a wet back structure. The first return is the waveform furnace, and the second and third return are the smoke tubes. The boiler is equipped with fully automatic control devices and safety protection devices to achieve fully automatic water level control, alarm, and shutdown; Automatic control of outlet steam pressure and overpressure protection, automatic boiler ignition, burner firepower regulation and shutdown protection to ensure safe and economical operation of the boiler.

 該產品的燃料為天然氣，燃料從燃燒器噴出，被電子點火棒點燃，在爐膽內微正壓燃燒。高壓煙氣由回燃室轉向180°入第二回程煙管，然后在前煙箱處再次轉向180°進入第三回程煙管后，經過煙箱經冷凝式節能器及煙囪排入大氣。

The fuel for this product is natural gas, which is sprayed out from the burner and ignited by an electronic ignition rod. It burns under slightly positive pressure inside the furnace. The high-pressure flue gas turns 180 ° from the combustion chamber into the second return flue pipe, and then turns 180 ° again at the front flue box into the third return flue pipe. After passing through the flue box, it is discharged into the atmosphere through a condensing energy-saving device and chimney.

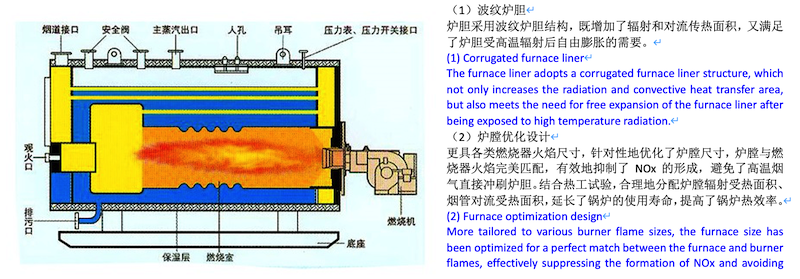

構造與性能：onstruction and performance:

direct flushing of high-temperature flue gas into the furnace liner. By combining thermal experiments, the reasonable allocation of furnace radiation heating area and smoke pipe convection heating area has extended the service life of the boiler and improved its thermal efficiency.

（3）煙氣系統

采用上乘的三回程全濕背式結構；二、三回程煙管采用低阻螺旋傳熱技術，換熱效果好、使用壽命長；獨特的前后煙箱設計制作工藝，內置迷宮式隔熱裝置，外置U型卡槽式鉸鏈設計，整體鋼制面板，厚重結實，有效地降低了散熱損失，提高鍋爐熱效率。

(3) Smoke system

Adopting a superior three return wet back structure; 2、 The three return smoke pipe adopts low resistance spiral heat transfer technology, which has good heat transfer effect and long service life; The unique design and manufacturing process of the front and rear smoke boxes, with built-in maze type insulation device, external U-shaped card slot hinge design, and overall steel panel, are thick and sturdy, effectively reducing heat loss and improving boiler thermal efficiency.

（4）節能器、冷凝器  (4) Energy saving device, condenser

（5）配件   (5) Accessories

（6）外觀  (6) Appearance

***工業造型設計師精心設計的外觀，新穎獨特而又不失與周圍環境的協調，徹底改變了工業鍋爐笨重的形象；表面噴涂***環保漆，漆面色澤純正，耐水耐刮；前后爐面為高溫磨砂噴漆，平整美觀，堅固耐用，易于保養維護。

The appearance carefully designed by professional industrial designers is novel and unique, yet still in harmony with the surrounding environment, completely changing the bulky image of industrial boilers; The surface is sprayed with high-end environmentally friendly paint, with a pure color and water resistance and scratch resistance; The front and rear furnace surfaces are high-temperature frosted and painted, which are flat, beautiful, sturdy, durable, and easy to maintain.

·       燃氣蒸汽鍋爐技術參數    Technical parameters of gas steam boilers
